4/8CH AI Safe Driving Monitoring 1080P H.265 high definition video recorder SD Card mobile car dvr recorder
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | গুয়াংডং, চীন |
| পরিচিতিমুলক নাম: | Vanwin Tracking |
| সাক্ষ্যদান: | CE/FCC/RoHS |
| মডেল নম্বার: | Vw9034ai |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 5 পিসি |
|---|---|
| মূল্য: | negotiated |
| প্যাকেজিং বিবরণ: | ডিফল্টরূপে নিরপেক্ষ কার্টন বক্স প্যাকেজ। অর্ডার 300 পিসি পৌঁছাতে পারলে কাস্টমাইজ প্যাকেজ উপলব্ধ। কাস |
| ডেলিভারি সময়: | নমুনাগুলির জন্য 2-3 দিন, বড় আদেশের জন্য 15-30 দিন |
| পরিশোধের শর্ত: | টি/টি বা ওয়েস্টার্ন ইউনিয়ন বা পেপাল |
| যোগানের ক্ষমতা: | প্রতি মাসে 5,0000 পিসি |
|
বিস্তারিত তথ্য |
|||
| পণ্যের নাম: | উচ্চ সংজ্ঞা ভিডিও রেকর্ডার | ফাংশন: | গাড়ির ভিডিও রেকর্ডার |
|---|---|---|---|
| ভিডিও কম্প্রেশন: | H.265 H.264 | অডিও প্রবেশ: | 4 বা 8 চ্যানেল এভিয়েশন প্লাগ |
| অডিও আউটপুট: | 1 চ্যানেল | সংক্ষেপণ: | G.711A কম্প্রেশন, 8KB/s গতি |
| ভোল্টেজ ইনপুট: | DC:+12V ~ +36V | ভোল্টেজ আউটপুট: | +12V@2.5A，+5V@2A |
| বিদ্যুৎ খরচ: | সাধারণ কাজ ~5W | আকার: | 15CM （D）* 14.7CM（W）* 4CM（H） |
পণ্যের বর্ণনা
4/8CH AI Safe Driving Monitoring 1080P H.265 high definition video recorder SD Card mobile car dvr recorder
AI Mobile MDVR Main Features:
1. H.264/H.265 Compression,support 4CH/ 8CH Real time 1080P,D1,720P 1080P HD adaptive
input(Automatically match camera to work without manual adjustment)；Multiple modes can be mixed
and combined. The HDD MDVR IPC 4CH is expandable 4AHD+4IPC; 8CH expandable 8AHD+4IPC.
2. 2CH video output (1CH CVBS video AV output, 1CH VGA output.)
3. Advanced bare disk+pre-partitioned storage technology solves the problem of easy damage caused
by uneven disk writing, resolves the issue of file fragmentation caused by repeated erasures, solves
the problems of data loss caused by storage file system crashes, inability to find storage, and file
garbled characters, solves the problem of data loss caused by time lapse, ensures data integrity and
effectiveness, and uses dedicated storage methods to solve data confidentiality issues.
4. 12V-36V adaptive wide voltage input with ultra-low power consumption design.
5. Unique UPS Technology ensures the integrity of record and data is not damaged in case of
emergencies such as abnormal power failure, the DVR still could work for 5-10 seconds and the
entire event process can be saved in a timely manner.
6. SD card+hard drive storage: SD card supports up to 512GB, hard drive supports mechanical or
solid-state drives, and supports up to 2TB.
7. Support multiple storage strategies such as multi disk circular storage, backup storage for disk loss,
and small stream image storage; SD card can be used as a mirror for recording, recording together
with the hard drive to achieve dual recording, ensuring the integrity of the recording and ensuring
foolproof performance
8. Supports USB interface, data backup and device upgrade
9. Support GPS/BD/G-Sensor module expansion; Remote monitoring (real-time video, monitoring,
intercom, broadcasting, video query, playback, download) can be achieved through 3G/4G/WIFI.
10. Support JT808 and JT1078 standard protocols; Support remote configuration/remote control of
devices.
11. Support PTZ control; Supports text scheduling and delivery.
12. Expandable oil sensor, temperature sensor, card reader, LED advertising screen, OBD, etc
13. Support IOS/Android mobile phone remote monitoring &management; Support multi-screen display
mode.
14. High reliability aviation interface, easily installation, more cost-effective, stable and reliable.
15.Expansion can be added: fatigue driving warning DSM+ road driving warning ADAS+ blind area
warning BSD function((Fatigue driving, Driver face recognition,phone calls, smoking, front vehicle
collision warning, lane deviation warning, etc.)
Parameters of AI driving video recorder:
| Mobile DVR Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
| SD card | SD card | Support Two SD cards ,a maximum of 512G for a single card, can support simultaneous video streaming to ensure data security |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 15CM (D)* 14.7CM(W)* 4CM(H) |
| Net Weight | 0.7 Kg | |

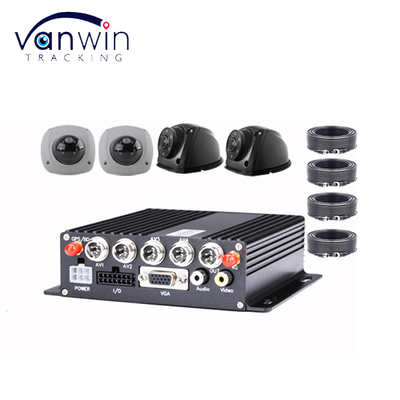

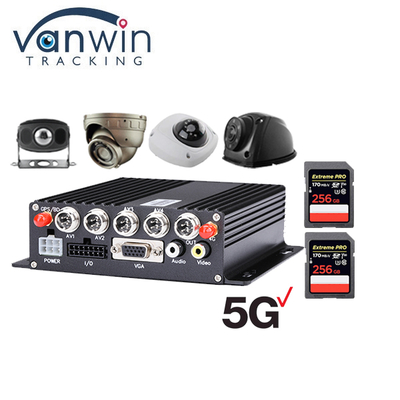

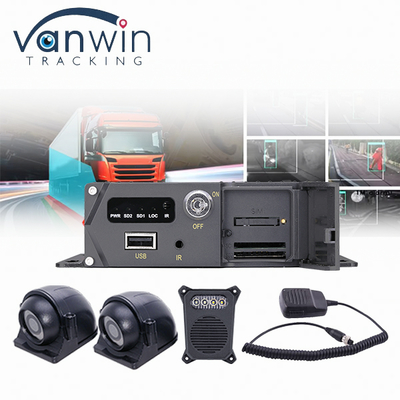

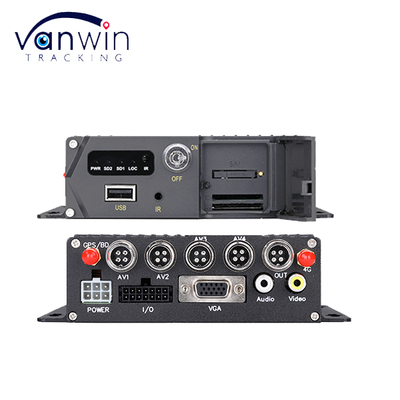

Product Picture:

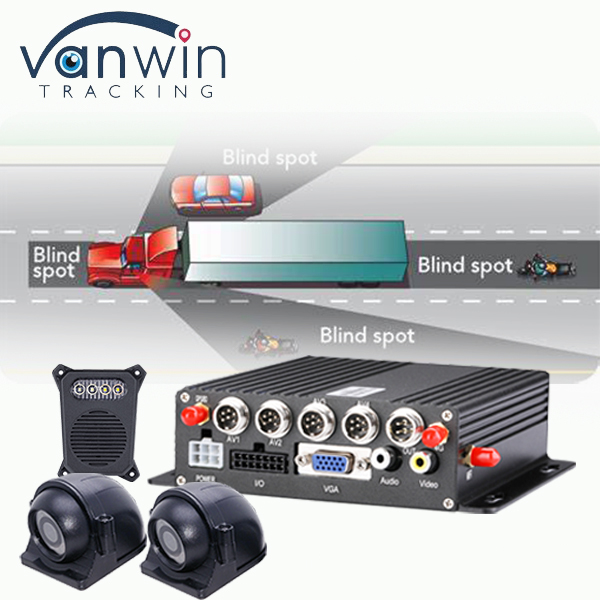

Mobile DVR scenario application:
AI MDVR How to install?
Our highlights Car auto parts:
Our AI MDVR such as ADAS DMS BSD, are at the forefront of the times. In 2018, we launched them on
the market and began mass production, receiving very high praise in South America. Customers love the
AI features and effects, and continue to return a large number of orders. Through the introduction of old
customers and our promotion, our products are exported to Europe, the United States, and Southeast
Asia. We are very confident that our product and technology updates&upgrades will bring you and your
customers more experiences! Our 5G technology is world leading (only suitable for countries that can run
5G), and our customization, functionality, and quality can compete with big brands. Most importantly, we
can provide better prices and services than any of them! Welcome to test and learn more.
